PRO PLUG SYSTEM FOR WOOD
SPECIES, SIZES, AND PACKAGING
The initial launch of the Smart-Bit Pro Plug System is for a hardwood plug size we are calling #8. This size refers in general terms to the #8 (4.5mm) size screw we are using, along with a hardwood plug that is approximately 5/16" (8.5mm) in diameter. The wood plug itself is 7.0mm in height. Pro Plug Decking Kits come with #305 stainless steel deck screws that are 2-1/2" (63mm) long, for decking that is between 3/4" (19mm) and 1-1/4" (32mm) thick. Pro Plug Flooring Kits come with hardened steel zinc plated screws that are 1-5/8" (41mm) long, for flooring that is 3/4" (19mm) thick.
A system designed for larger dimension hardwood decking — 1-1/2" thick (38mm) — is currently in development and will involve larger diameter screws and larger wood plugs.

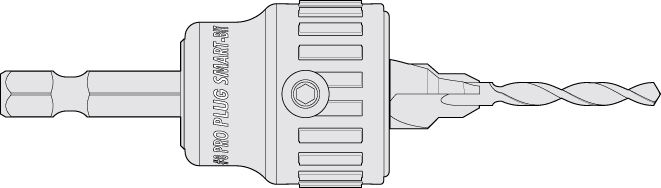

| PRO PLUG TOOL | |
|---|---|
| Each Pro Plug tool package includes a complete tool, 2 standard size replacement drill bits, a Stub Bit and a hex wrench for replacing drill bits. Pro Plug Replacement Drill Bits are also available and sold in packs of 5. Currently, there are only replacement bits for our standard size drill bits. In the future, replacements will also be available for the Stub Bit. | |
 | |
| DESCRIPTION | ITEM NO. |
| Pro Plug Tool for Wood | BDA241 |
| Replacement Drill Bits | BDA261C |
| PRO PLUG DECKING KIT | ||||
|---|---|---|---|---|
| Each kit comes with wood plugs, screws, driver bit(s), and our patent pending Pro Plug Glue Nozzle.* | ||||
 |  |  |
||
| SPECIES* | FASTENER SIZE | ITEM NO.* | ITEM NO.* | ITEM NO.* |
| (Grade 305 Stainless) | 100 pcs / 1 Bit | 350 pcs / 1 Bit | 1050 pcs / 2 Bits | |
| Ipe plugs | 8 x 2-1/2” | PWS08133010 | PWS08133035 | PWS08133105 |
| Cambara plugs | 8 x 2-1/2” | PWS08118010 | PWS08118035 | PWS08118105 |
| Tigerwood plugs | 8 x 2-1/2" | PWS08178010 | PWS08178035 | PWS08178105 |
| Meranti plugs | 8 x 2-1/2" | PWS08153010 | PWS08153035 | PWS08153105 |
| Genuine Mahogany plugs | 8 x 2-1/2" | PWS08185010 | PWS08185035 | PWS08185105 |
| Cumaru plugs | 8 x 2-1/2” | PWS08122010 | PWS08122035 | PWS08122105 |
| Garapa plugs | 8 x 2-1/2" | PWS08127010 | PWS08127035 | PWS08127105 |
| Jatoba plugs | 8 x 2-1/2" | PWS08138010 | PWS08138035 | PWS08138105 |
| Massaranuba plugs | 8 x 2-1/2" | PWS08152010 | PWS08152035 | PWS08152105 |
| *The Pro Plug #8 Standard GLUE NOZZLE will attach to any interior or exterior 4 or 8 ounce bottle of Titebond® wood glue and any 4, 8 or 16 ounce bottle of Elmer's® wood glue. *Starborn offers custom runs for any wood species. The base material must be sent to our plant in the USA, with a minimum order of 5,000 plugs and fasteners. Pricing and required lumber for these orders will be provided on request. *100 piece kits are sold in packs of 4. 350 and 1050 piece kits are sold individually. |
||||

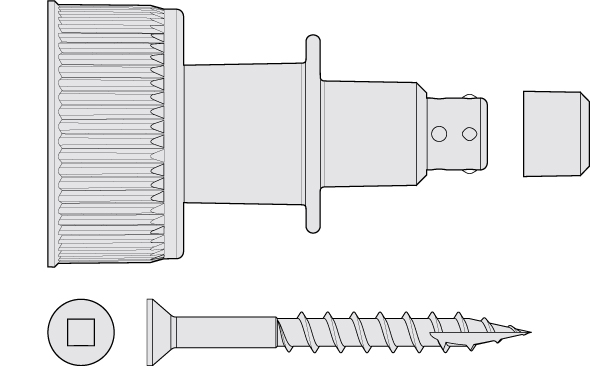

| PRO PLUG FLOORING KIT | ||||
|---|---|---|---|---|
| Each kit comes with wood plugs, screws, driver bit(s), and our patent pending Pro Plug Glue Nozzle.* | ||||
 |  | |
||
| SPECIES* | FASTENER SIZE | ITEM NO.* | ITEM NO.* | ITEM NO.* |
| (Zinc Plated) | 100 pcs / 1 Bit | 350 pcs / 1 Bit | 1050 pcs / 2 Bits | |
| White Oak plugs | 8 x 1-5/8” | PWY08159010 | PWY08159035 | PWY08159105 |
| Red Oak plugs | 8 x 1-5/8” | PWY08158010 | PWY08158035 | PWY08158105 |
| Ipe plugs | 8 x 1-5/8” | PWY08133010 | PWY08133035 | PWY08133105 |
| Genuine Mahogany plugs | 8 x 1-5/8” | PWY08185010 | PWY08185035 | PWY08185105 |
| Eastern White Pine plugs | 8 x 1-5/8” | PWY08186010 | PWY08186035 | PWY08186105 |
| American Walnut plugs | 8 x 1-5/8” | PWY08181010 | PWY08181035 | PWY08181105 |
| American Cherry plugs | 8 x 1-5/8” | PWY08121010 | PWY08121035 | PWY08121105 |
| Maple plugs | 8 x 1-5/8” | PWY08148010 | PWY08148035 | PWY08148105 |
| Poplar plugs | 8 x 1-5/8” | PWY08164010 | PWY08164035 | PWY08164105 |
| *The Pro Plug #8 Standard GLUE NOZZLE will attach to any interior or exterior 4 or 8 ounce bottle of Titebond® wood glue and any 4, 8 or 16 ounce bottle of Elmer's® wood glue. *Starborn offers custom runs for any wood species. The base material must be sent to our plant in the USA, with a minimum order of 5,000 plugs and fasteners. Pricing and required lumber for these orders will be provided on request. *100 piece kits are sold in packs of 4. 350 and 1050 piece kits are sold individually. |
||||
